KUS S3H holding tank level sensor 40 cm

60,30 €

incl. 21% VAT , plus

Pcs.

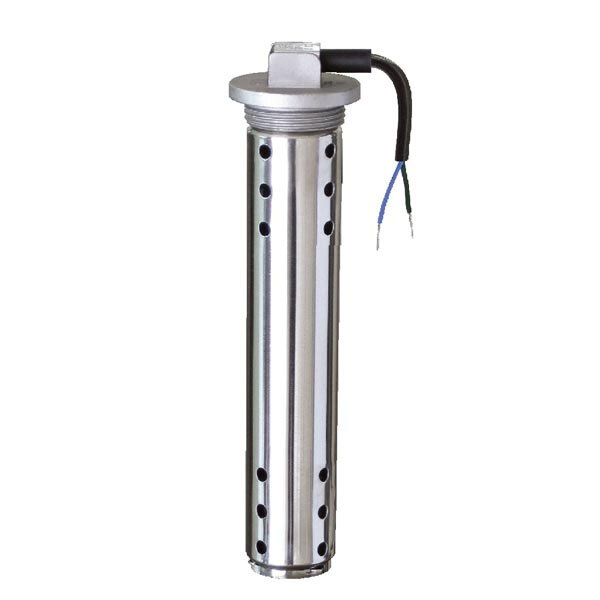

KUS level sender S3H for grey / black water holding tanks

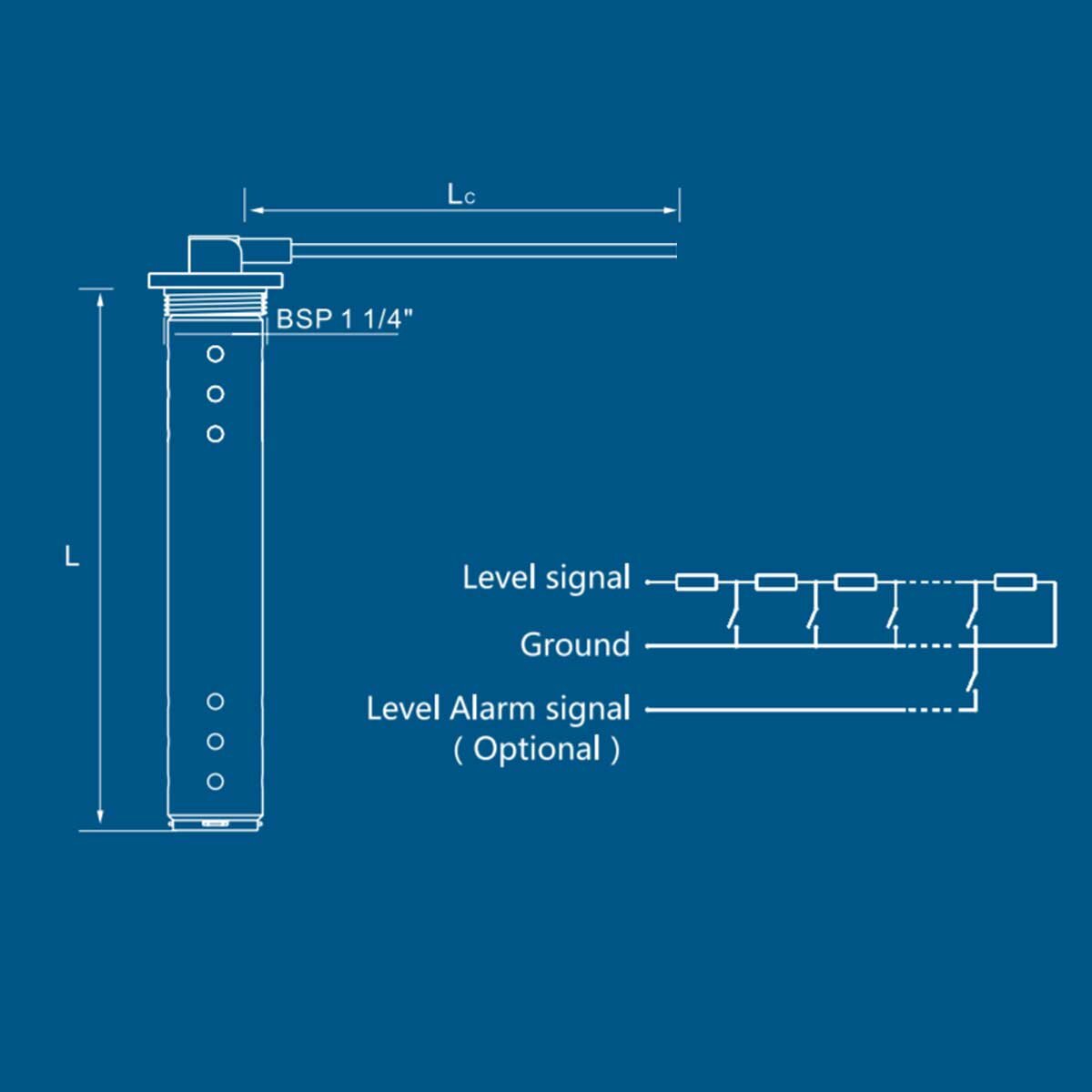

The sensor has a 1 1/4" BSP thread, which allows to screw the sensor directly into the tank. The body is made of AISI 316 stainless steel. The sender hat a diameter of 55 mm. Waterproof according to IP67. Supplied complete with seal. Can be used with 12 and 24 volt systems. The connection cable length is 46 cm.

Technical Data
Output signal: 240-33 Ohm (240 empty / 33 full)
Rated power: 125mW
Rated current for alarm switch: 500 mA
Operation temperature: -40°C bis +85°C

This level sensor is available in lengths of 15 - 55 cm. (Lenghts up to 120 cm on request)
